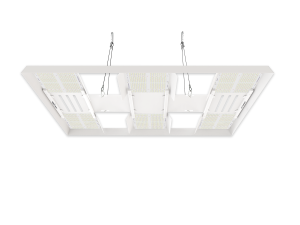

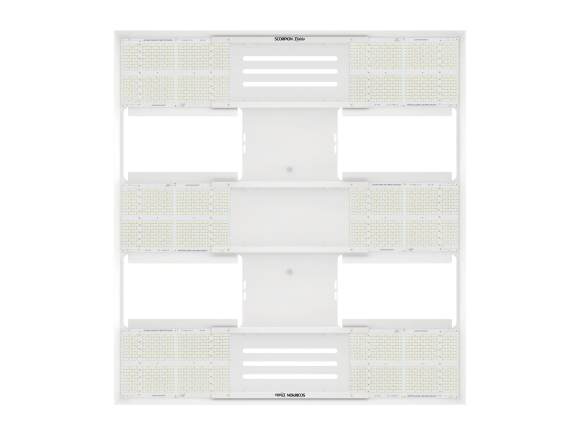

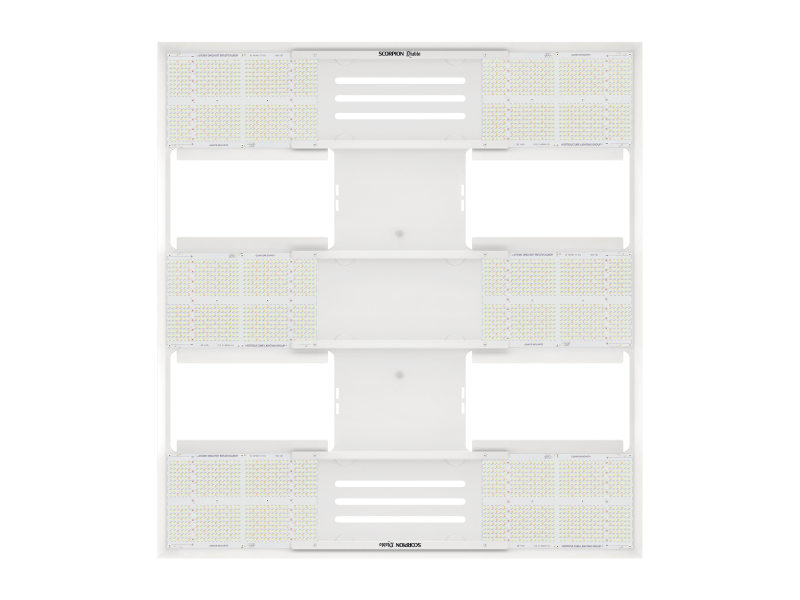

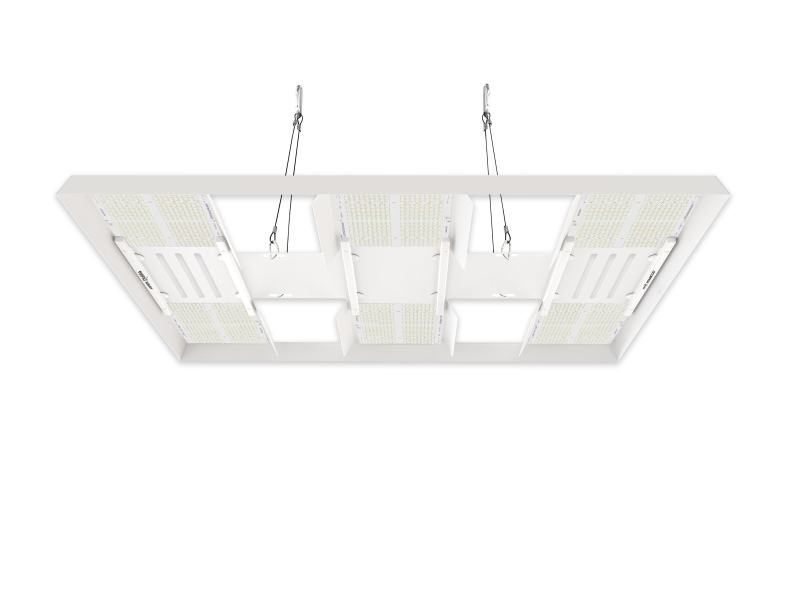

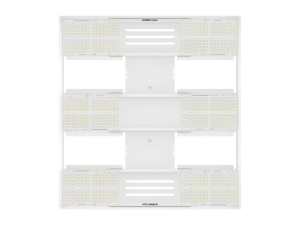

HLG Scorpion® Diablo™ commercial lamps are designed for growers who want to maximize crop yields with a grow light that offers both high intensity and high efficiency. This lamp uses 6 advanced design Diablo Quantum Boards® for an even light spread making it perfect for tents, flood tables, rolling benches and vertical racks.
Integrated reflectors improve photon delivery resulting in better quality yields even at the lower levels of canopy. This lamp produces over 2100 PPF output with photon efficacy of 3 µmol/J
HLG Scorpion® Diablo™ Manual
Independent Efficiency Lab Report
Independent PPFD Report
Top Features
Over 2100 PPF output with photon efficacy of 3 µmol/J
Integrated reflectors improve PPFD levels at all levels of canopy

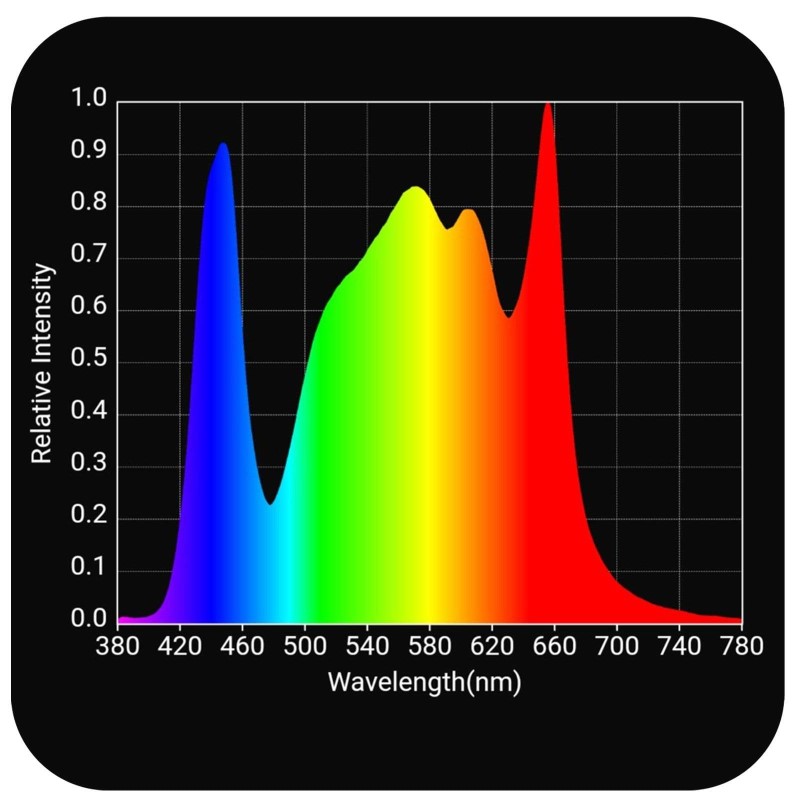

Plant-centric White spectrum with Deep Red. Red:Green:Blue ratio of 37:42:21
Reliable passive-cooled design
Dimmable power supply included
5 Year Warranty
GrowFlux Information Booklet
*An Access Point (sold separately) is required if you choose the GrowFlux wireless dimming option.
Specifications
Power
0-715 Watts
Voltage Range
120-277 VAC 50-60Hz
Flowering Footprint/ Canopy Distance
5' x 5' / 15" - 24"
Veg Footprint/ Canopy Distance
6' x 6' / 30” - 36"
System PPF Efficacy
3 μmol/J
Total output
2121 PPF
Dimensions
38.75" x 36.125" x 3.25"
Product Weight
24.15 lbs
Certifications
UL 8800, UL 1598 damp location, DLC
